Cross Linkable ETFE (XL-ETFE)

Ruiflon’s cross-linkable ETFE meets the standards specified in Sections 20, 21, 22, and 23 of MIL-W-22759 (SAE AS 22759), VG 95218, and Sections 20, 21, 22, and 23 of GJB 773A.

The aluminum alloy aerospace cables produced using Ruiflon's cross-linkable ETFE have passed the aircraft installation testing.

INQUIRY >

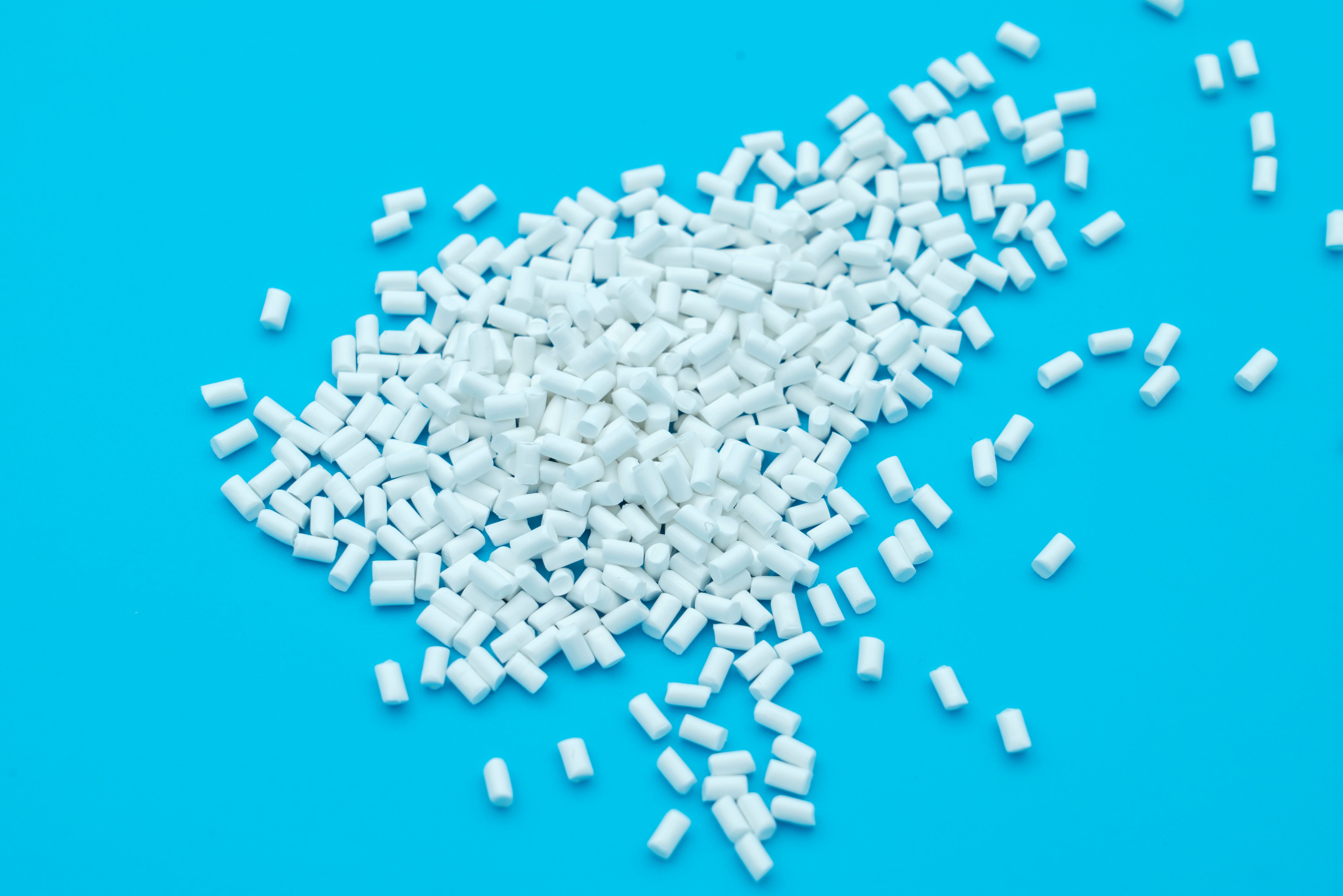

Irradiation cross-linkable ETFE is a high-performance modified compound that offers excellent temperature resistance and mechanical properties.

It is suitable for use in specialized wires that meet the SAE AS 22759 specification, with a working voltage of 600V and a long-term service temperature below 200°C.

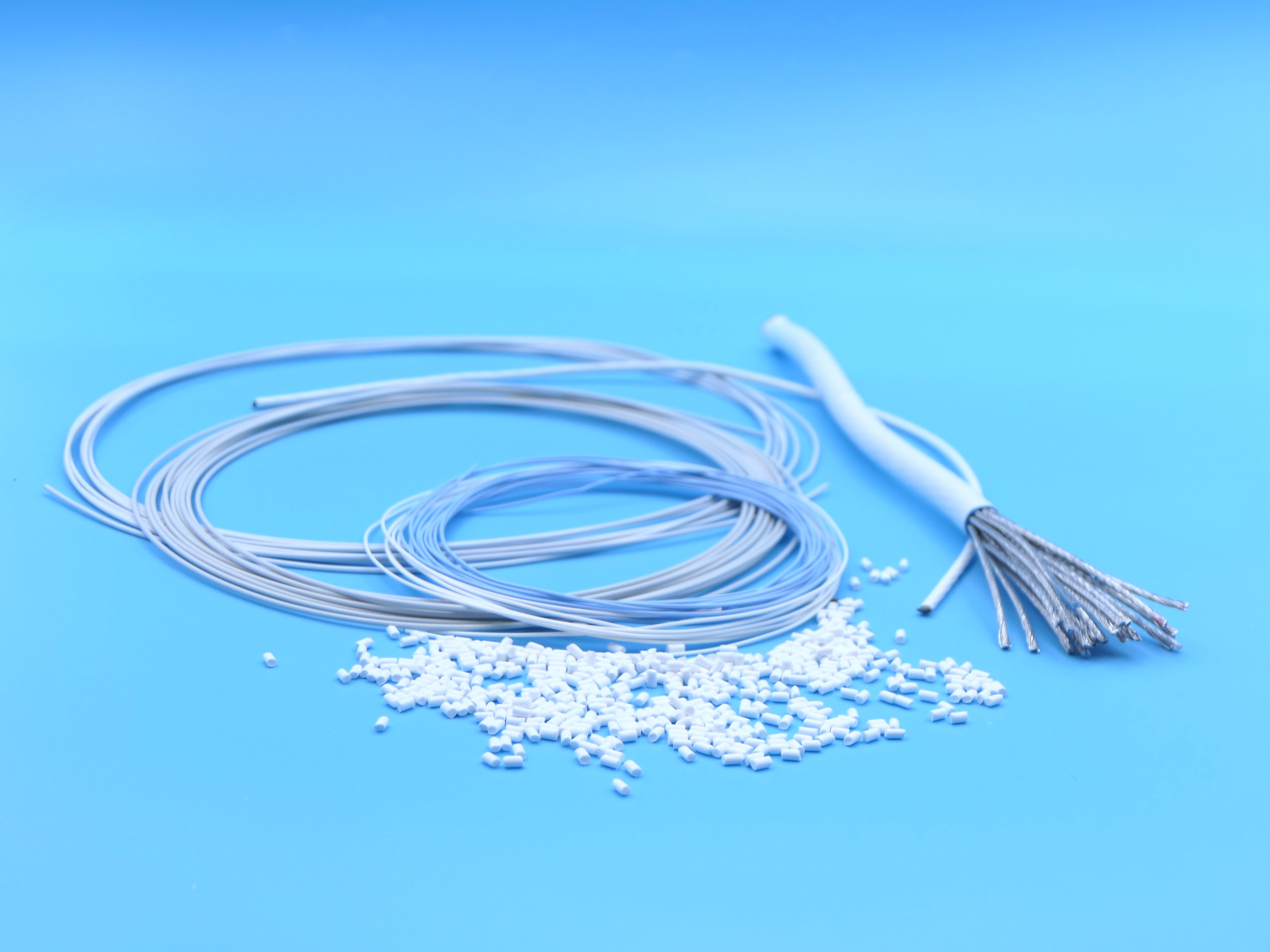

Typical applications for the wire include aerospace, aircraft, offshore platforms, etc.

Features

Continuous operating temperature range: -65°C to +200°C
Withstands a 7-hour cross-linking degree test at 300°C
Performs well in flame resistance tests
Excellent corona resistance
Exceptional resistance to heat, cold, oil, abrasion, ozone, and weathering
Superior chemical resistance

Applications

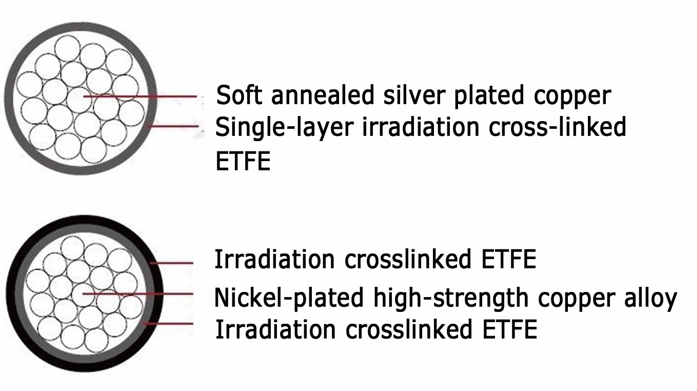

1.Irradiation crosslinked ETFE one-layer insulation wire (wall thickness: 0.10mm—0.15mm)

2.Irradiation crosslinked ETFE two-layer insulation wire (wall thickness: 0.20mm—0.25mm)
