MΩ Tester 3587
- Suitable for insulation resistance measurement of lithium ion secondary batteries
- Test voltage ranging from 25V to 1000V with 1V resolution
Details
- High-speed sampling: 50 or 60 times/sec.
- Test voltage: DC 25～1000 V (resolution: 1V)
- Resistance range: 2/20/200/2000 MΩ
- Connection checking function available to prevent misjudgment due to bad connection
- Compact & light: 205(W)×64(H)×169(D)mm, 1kg
| ■ Model ３５８７ | - □ |
| ① |
① Data Output
| Code | Description |
| X | RS-232C |
| 4 | RS-232C + BCD (open collector) |

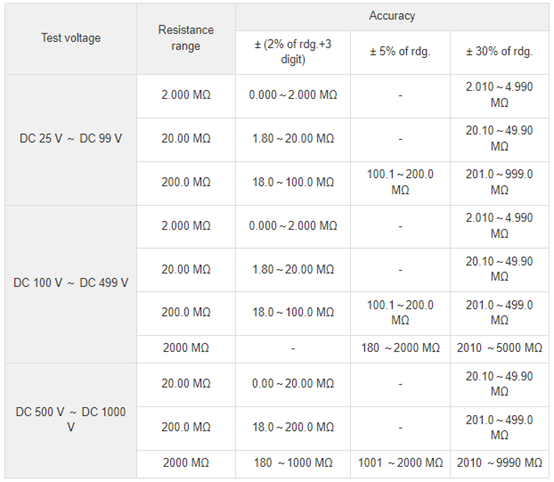

■ Measuring Range
Product catalogue is available upon request.
